Specialist Brickwork · Worcestershire · 2019

Curved Blue Brickwork, Garden Steps & Indian Sandstone Landscaping.

A steeply sloping garden re-shaped with hand-laid blue brick retaining walls, a swept curved wall, brick-and-sandstone steps and hundreds of square metres of Indian sandstone paving, paths and terracing.

Overview

This job was pure brickwork and landscaping. The garden fell away sharply from the house and the outbuilding above it, leaving a plot that was awkward to use and, in places, unsafe to walk across.

The answer was to hold the ground properly rather than dress over it: engineered foundations, hand-laid blue engineering brick retaining walls, a swept curved wall struck to a radius on site, and brick-piered steps tying the upper level down to a new sandstone terrace.

Above and around it all we laid Indian sandstone — a large rear terrace looking out over the valley, side paths tight against the house, and landings at each change of level — with drainage channels, edge details and falls all set before a single flag went down.

The Challenge

A garden that fell away faster than it could be used.

The site dropped steeply between the house, the garden room above it and the lower garden. Temporary timber sleepers were holding back what they could, and the change in level made the top half of the plot effectively off-limits.

Before any brick was laid we set out the levels, dug and cast foundations deep enough to take retained earth, and installed land drainage behind the wall lines so water has a route out instead of building pressure against the brickwork.

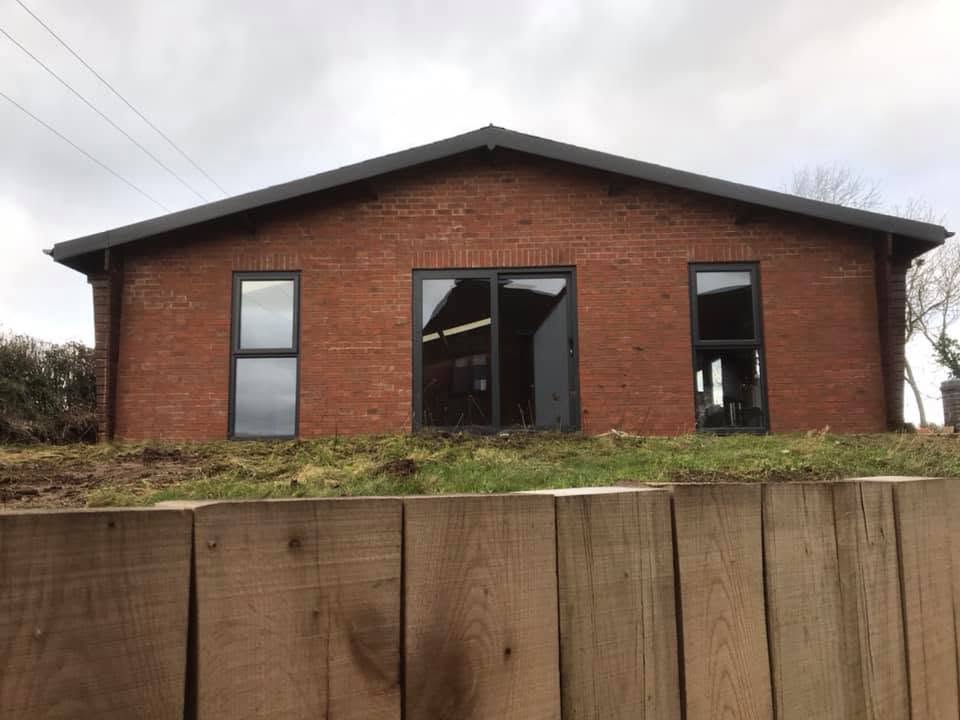

The upper level before the permanent brickwork went in — sleepers doing a temporary job.
Specialist Brickwork

A curved wall struck to a radius, brick by brick.

The centrepiece is the swept curved retaining wall. There is no cheating a curve in brickwork: every course is set out from a fixed centre point, each brick is cut and gauged so the perpends stay even around the arc, and the bullnose coping is laid to the same radius so the top line runs true from any angle.

We used blue engineering brick throughout — dense, low-absorption and exactly the right material where soil, water and frost meet masonry. Rolled bullnose copings finish the wall heads and the raking sections beside the steps, so the profile sweeps down the flight in one continuous line rather than stepping awkwardly.

The curved wall and its radiused bullnose coping, enclosing the lower sandstone landing.
Raking copings follow the flight; capped pillars anchor every change of direction.
The Steps

Brick risers, sandstone treads, level for level.

The flight linking the garden room to the terrace is built in the same blue brick, with riven Indian sandstone treads set on a full mortar bed and a slight nose to throw water clear of the riser below.

Every riser is identical in height and every tread identical in going — the detail people never consciously notice, but the reason a flight feels right underfoot. Brick pillars with cast caps bookend the steps and carry the coped balustrade walls either side.

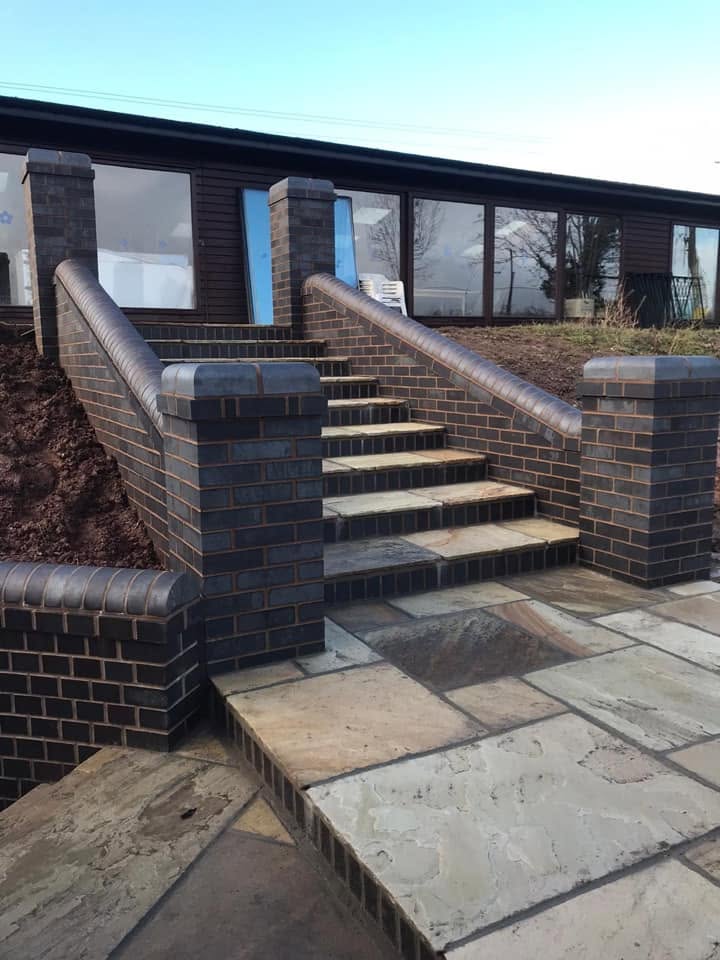

Equal risers, equal goings, and pillars set out before the first course went down.

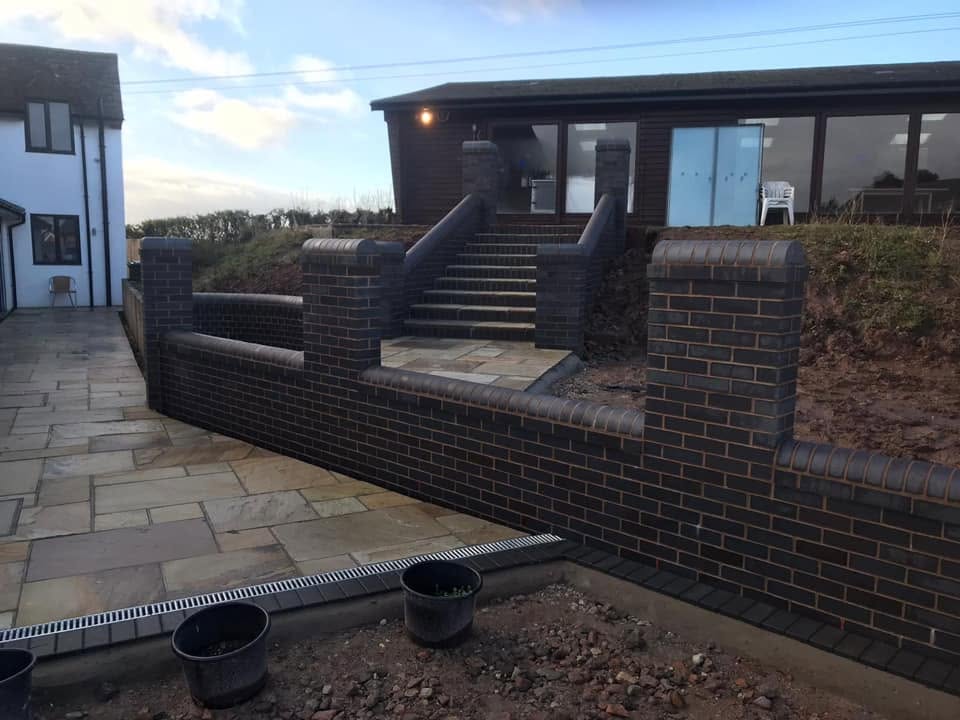

The wider scheme: retaining walls, pillars, steps and a slot drain taking surface water away.
Landscaping

Indian sandstone terrace, paths and landings.

The main terrace runs the full width of the rear elevation and out towards the valley view, laid in riven Indian sandstone in a random rectangular pattern so no joint runs more than a couple of flags in any direction.

Everything is laid on a full wet bed with falls away from the house, jointed and pointed by hand. Side paths were taken tight around the elevations at a consistent width, with a gravel margin against the render and a clean cut edge to the retaining sleepers — practical routes, finished to the same standard as the show face.

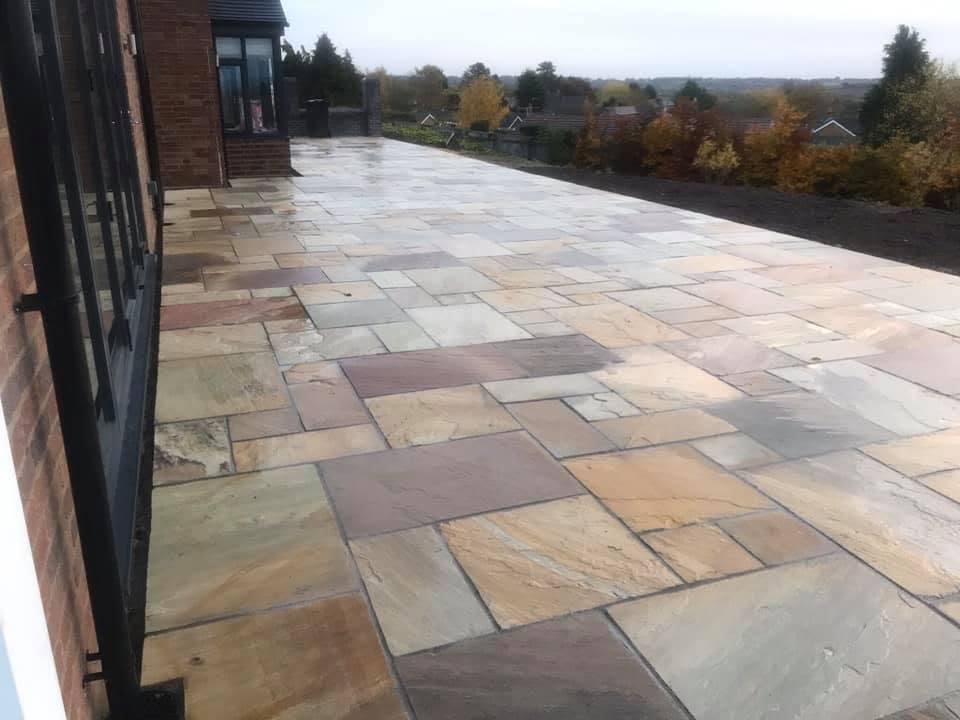

The rear terrace: random rectangular sandstone, falls set away from the building.
Multi-tone riven paving laid on a full wet bed and hand-pointed.

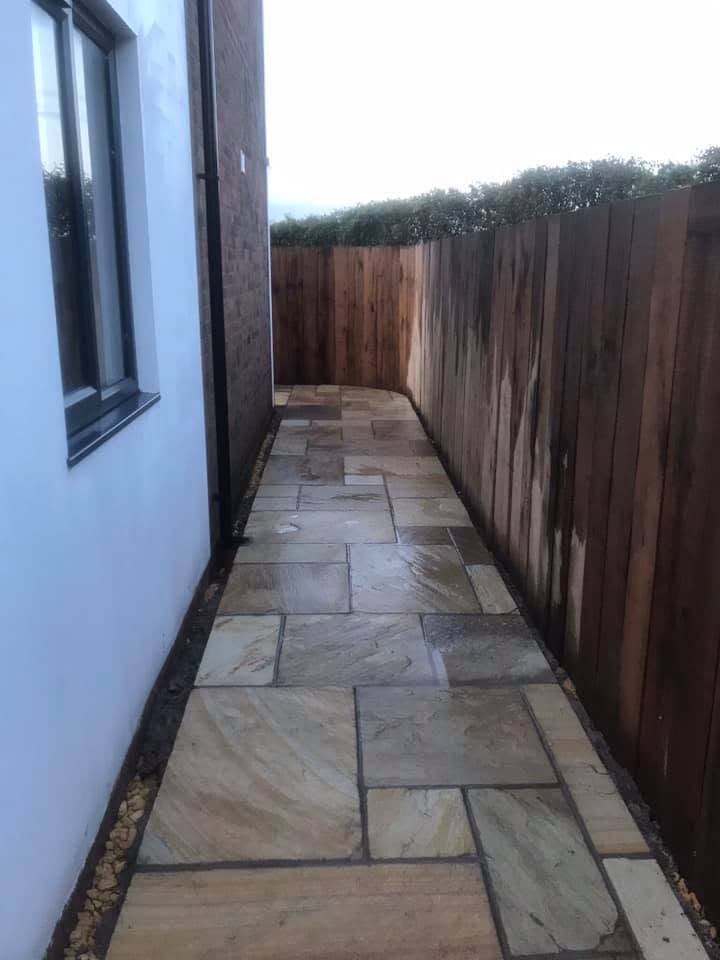

Side path taken tight to the elevation with a gravel margin against the render.

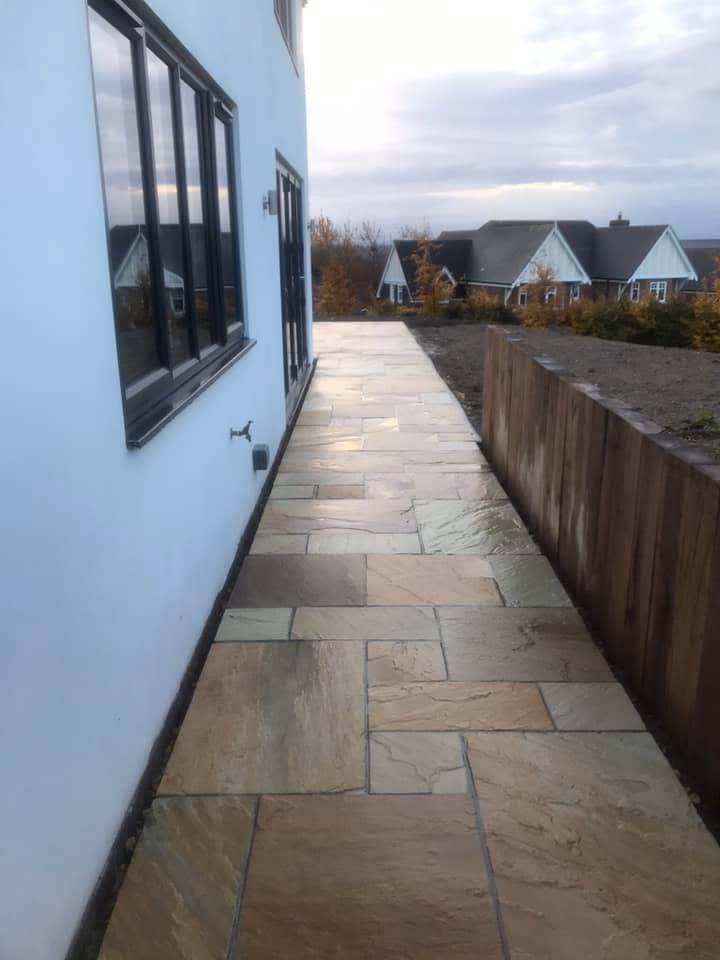

The same detail on the higher side, holding the bank with sleeper retaining.
Outcome

A hillside garden turned into usable ground.

What was an unusable bank is now three connected levels: a terrace off the house, a paved landing inside the curved wall, and safe stepped access up to the garden room.

The blue brickwork will outlast everything around it, the drainage is designed rather than hoped for, and the sandstone ties the whole scheme back to the buildings. It remains one of the jobs we point to when people ask what hand-laid brickwork actually buys you.

Gallery

Every image from Curved Blue Brickwork, Garden Steps & Indian Sandstone Landscaping.

Swipe, use the arrows or your keyboard to move through all 9 photos — tap any image for fullscreen.

1 / 9

The upper level before the permanent brickwork went in — sleepers doing a temporary job.
